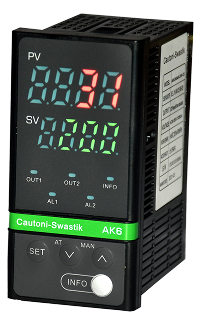

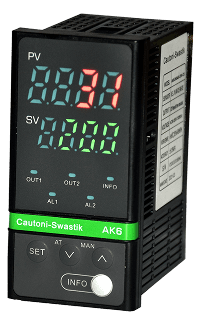

AK 6 Series PID Controller

Description

SENSOR

T/C : K,E,J,S,B,N,R,T, RTD: PT-100/3 WIRE

ACCURACY

± 0.5 % OF FS

SAMPLING TIME

300 MS

RESOLUTION

0.1°C / 1°C USER SELECTABLE (-99.0 TO 199.9)

UNIT

°C / °F USER SELECTABLE

CONTROL ACTION

PID / ON-OFF

AUTO / MANUAL OPERATION

OUTPUT POWER IS INCREASED / DECREASED BY UP / DOWN KEY IN MANUAL MODE

DISPLAY /COLOR

4 DIGIT DUAL DISPLAY UPPER : 4 DIGIT RED LOWER : 4 DIGIT GREEN SEVEN SEGMENT DISPLAY

KEYBOARD

4 KEYS

MOUNTING

FLUSH PANEL MOUNTING WITH SIDE CLAMP

POWER SUPPLY

95 - 270 VAC, 50 - 60 Hz, > 5 VA

AK 6 SERIES PID CONTROLLER - Relay / SSR Output

NUMBER OF RELAY

1 RELAY / S.S.R OUTPUT

RELAY

RELAY AC 220V / 30 VDC / 3A

LOGIC LEVEL (S.S.R)

ON : 12 VDC OFF : 0.5 VDC / 30 mA, LOAD RESISTANCE > 1K
